Unique Design Is Proprietary To Ford 3-valve Engines
One Heat Range Colder Than The Stock Mustang GT 4.6L 3V Plug
Two Heat Ranges Colder Than The Stock 5.4L Truck 3-Valve Engine
Sold In Sets Of 8
In The Box

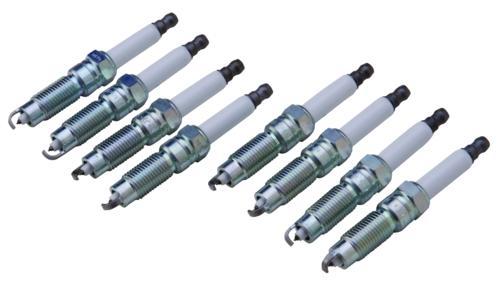

(8) Spark Plugs
Product Description
If you are running higher than stock compression in your 4.6L 3 valve motor, these spark plugs are what you need! These plugs are two heat ranges colder than the stock plugs giving you more performance for your 2008-2010 Mustang.
Fits 2008 and newer 3V heads requiring the 12mm thread
Note:
Engines with late style 12mm spark plugs can be identified by coil engineeing number 8L3E. Engines with early style 16mm "High Thread" design spark plugs can be identified by coil engineering number 3L3E.
Fits 2008 and newer 3V heads requiring the 12mm thread
Ford Racing Performance Parts - Mustang Ford Racing Parts
Ford Racing is the leader in performance parts and accessories for Mustang and Ford Lightning.
LatemodelRestoration.com is proud to offer Ford Racing Performance Parts for your project. Ford Racing is dedicated to manufacturing the highest quality products offered in the industry. Choose from suspension, exhaust, wheels, and other performance parts at LatemodelRestoration.com. If you want the best for your Mustang or SVT Ligtning, look no further than FRPP!
Upload your own picture of the Mustang Ford Racing 12mm Spark Plug (08-10) 4.6L 3V
Please make sure to hold your device horzonally (like a camera) rather than vertical (like a phone). By uploading an image, you agree to give LatemodelRestoration.com permission to use it in future advertisements and promotions.
Wheel Diameter
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
Wheel Width
Wheel Backspacing
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Circle
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
Wheel Offset
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Lug Pattern
Wheel lugs or bolt pattern is merely the number of bolts or lugs on the wheel. As the bolts will be evenly spaced, the number determines the bolt pattern. For example, most U.S. passenger cars have 5 bolts while compact models sometimes have only 4 and pick-up trucks can have as many as 6 or 8.
